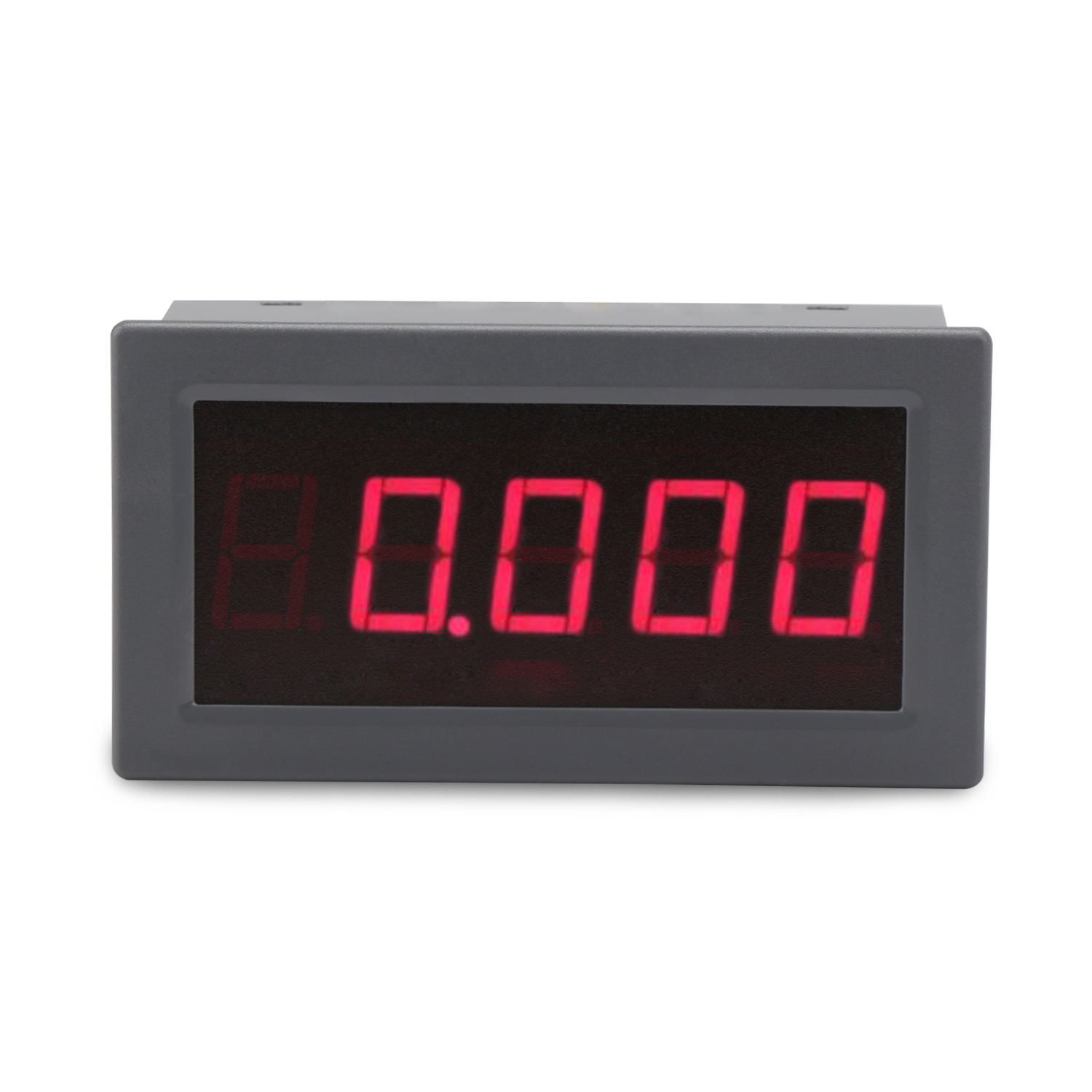

-30% Digital Tester +/- 0~19.999mA Digital Ammeter Red Led Display Ampere Meter DC 5V Current Meter High Accuracy 5 Digits Monitor Meter

Ask Question

It is a Digital Tester /Ammeter/Ampere Meter, Measurement Range:DC+/- 0~20mA,Power Supply:DC +5 V, It has Reverse polarity protection, small size, high efficiency, long term stable and reliable quality,easy installation and use. Application: industrial equipments,electronic equipment, Power distribution box, distribution cabinet, regulators, teaching aids and All kinds Current Measuring

Features:

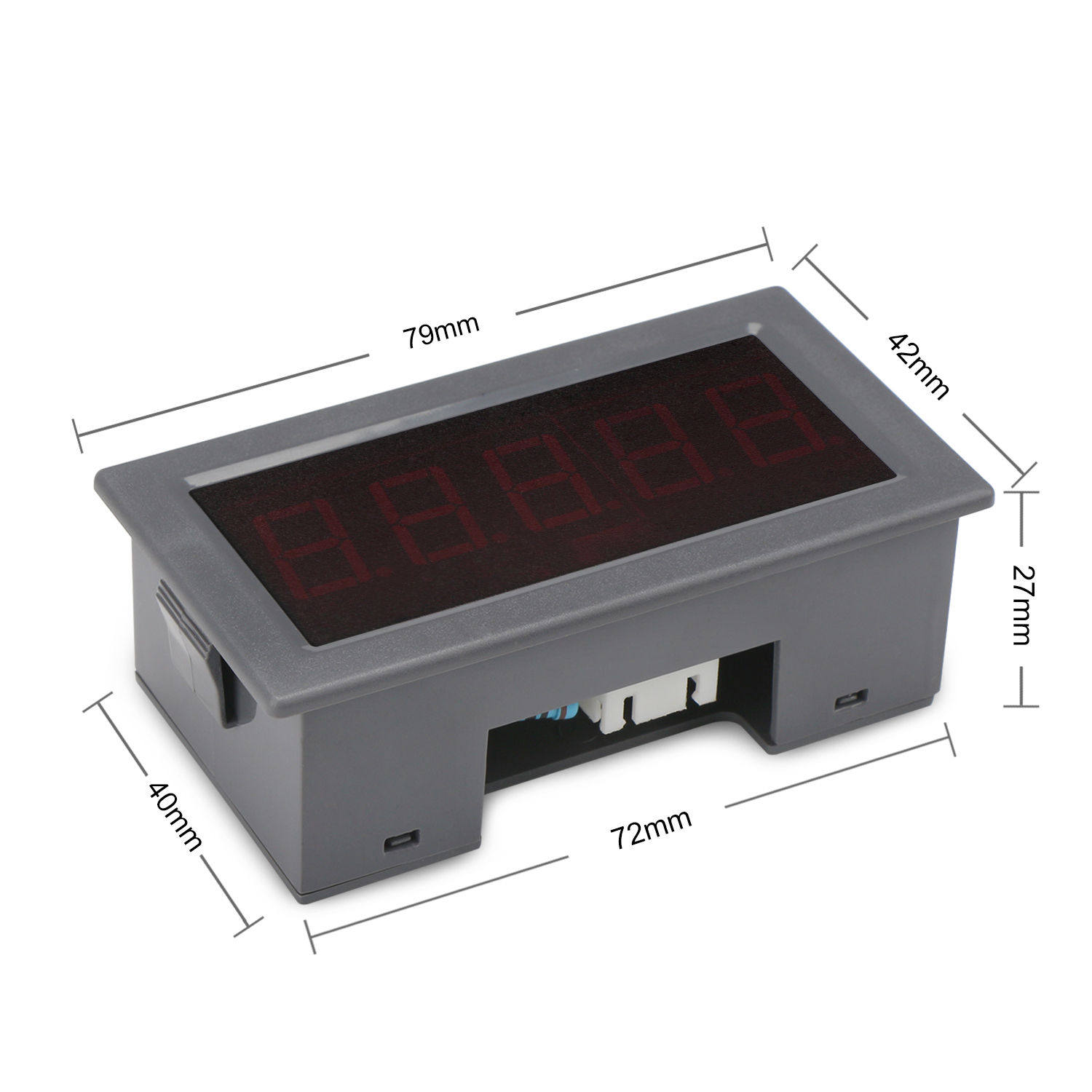

  • Dimensions: 79 x 42 x 27 mm
  • Cutting size: 76 x 39.5 mm
  • Operating voltage: DC +5 V +/- 0.5
  • Operating Current: <100mA
  • Full measurement Range: +/-19.999mA
  • Resolution: 0.001mA
  • Displayed: 4 1/2 0.56" Red LED digital tube
  • Input impedance:> 1 Mohm
  • Measurement rate: >/= 2 / S
  • Over-range display: "H"
  • Working temperature: -10 ~ +50 °c
  • Operating Humidity: 10 ~ 80% (non-condensing)
  • Working pressure: 80 ~ 106kPa
  • Sunlight: No direct exposure
  • SMT process
  • Quartz crystal, high accuracy
  • Case closure,pure flat displayed
  • limiting resistor, LED digital tube consistent brightness

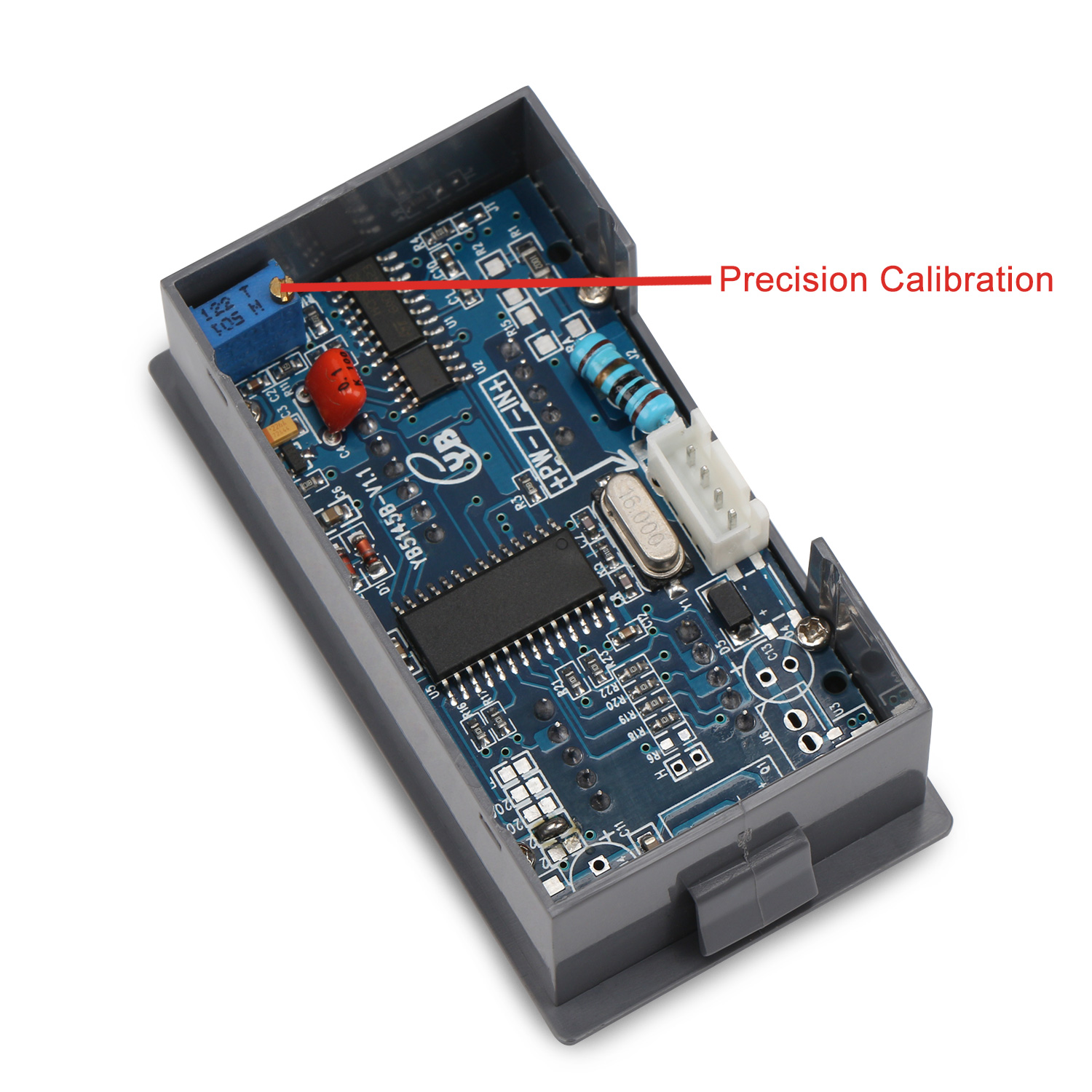

  • With Calibration potentiometer
  • Selectable decimal point position
  • Can Measure positive and negative amps
  • Power supply with polarity protection circuit
  • Application: industrial equipments,electronic equipment, Power distribution box, distribution cabinet, regulators, teaching aids and All kinds Current Measuring

Package included:

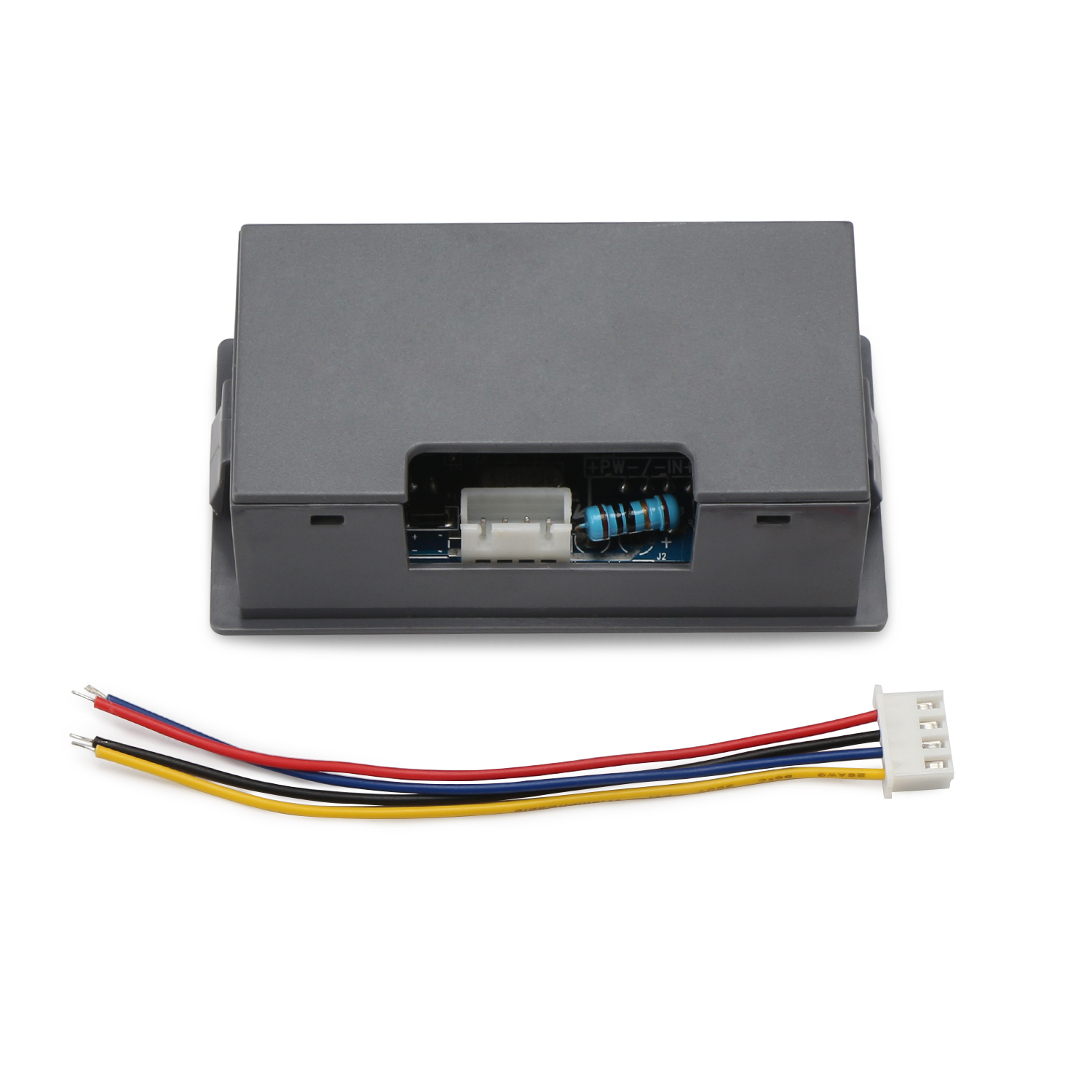

  • 1 x Digital Ammeter (Digital Tester)
Attributes
input voltage5V
output current-20mA/20mA
output power--
output voltage--
output ways1

Write a review

Please login or register to review

Digital Tester +/- 0~19.999mA Digital Ammeter Red Led Display Ampere Meter DC 5V Current Meter High Accuracy 5 Digits Monitor Meter

  • Brand: Drok
  • Product Code: 100075
  • Availability: In Stock
  • $14.90
  • $10.50
  • Bulk Buy Discounts. Buy more please contact us
    Qty251030+
    Price$9.98$9.45$8.93$8.40
