Parameters:

• Suitable battery types and series number:
• Lithium polymer battery (nominal 3.7V): 1~23 cells
• Lithium Iron battery (nominal 3.2V): 1~26 cells
• Storage battery (nominal 12V): 1~7 cells
• Input power supply: 8~100V
• Tested voltage range: 2~100V
• Working current: 6 mA
• Current consumption: 7 uA
• Load current on controlling side: 300mA  (500mA maximum)
• Working temperature: 0~60°c

Product Features:

• 1. High Voltage Intelligence Version: supply voltage is 8~100V, with intelligence control function, this capacity indicator is suitable for high supply voltage and the occasion that need to control charging &discharging or load.

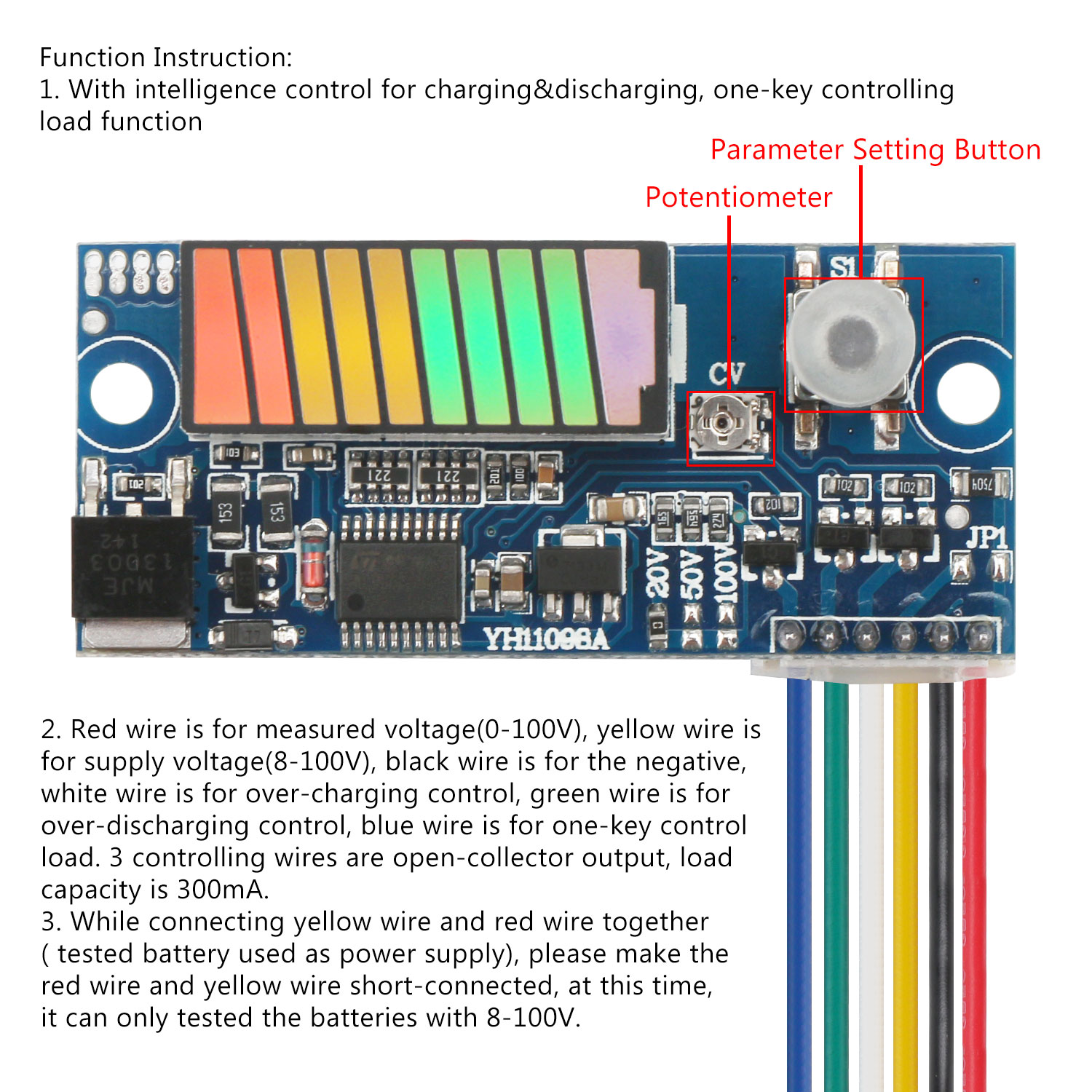

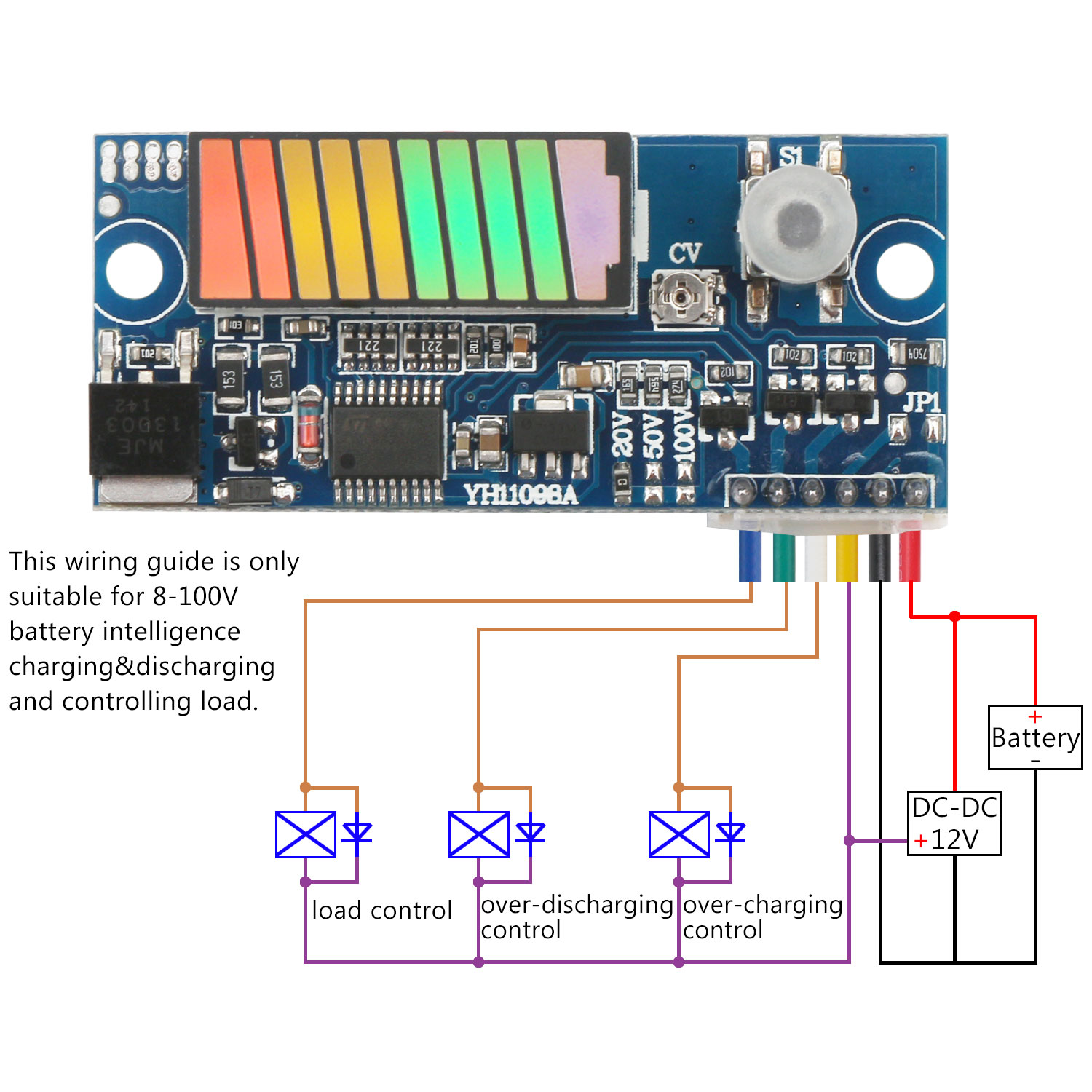

• 2. With intelligence control for charging, over-charging and over-discharging protection, one-key to control output of load function.
• 3. battery capacity indicator adopts Microcontroller intelligent control and displays remaining capacity of battery with color strip; users can easily get to know working status of battery.
• 4. Factory Default 4 cells Lithium polymer battery, please set parameters according to actual needs before using.

Package includes：

• 1 x  Battery Capacity Tester/Protection Module
