-48% 600W DC Boost Step Up Converter Car Laptop Note Book Power Supply 10-60V to 12-80V Voltage Regulator

Ask Question

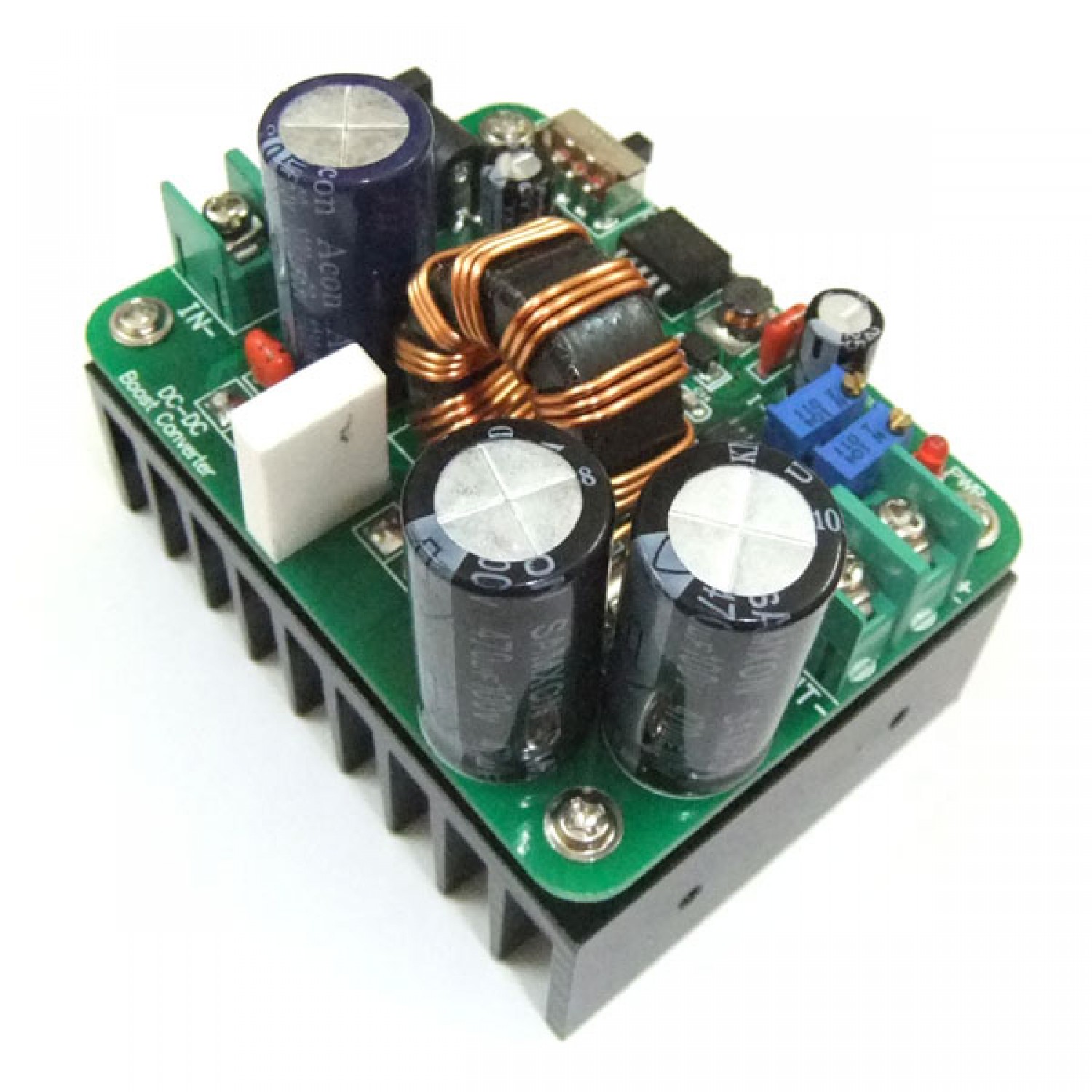

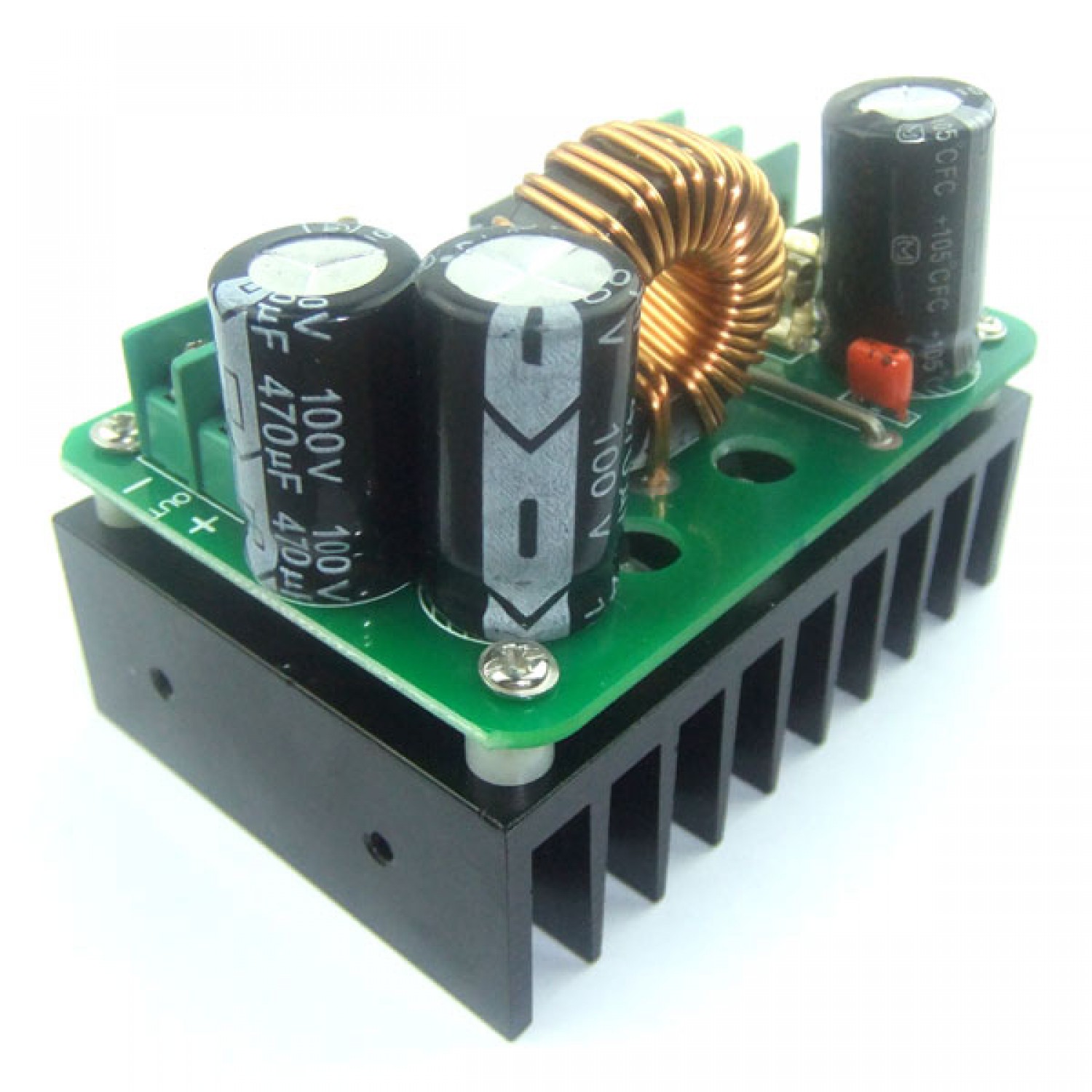

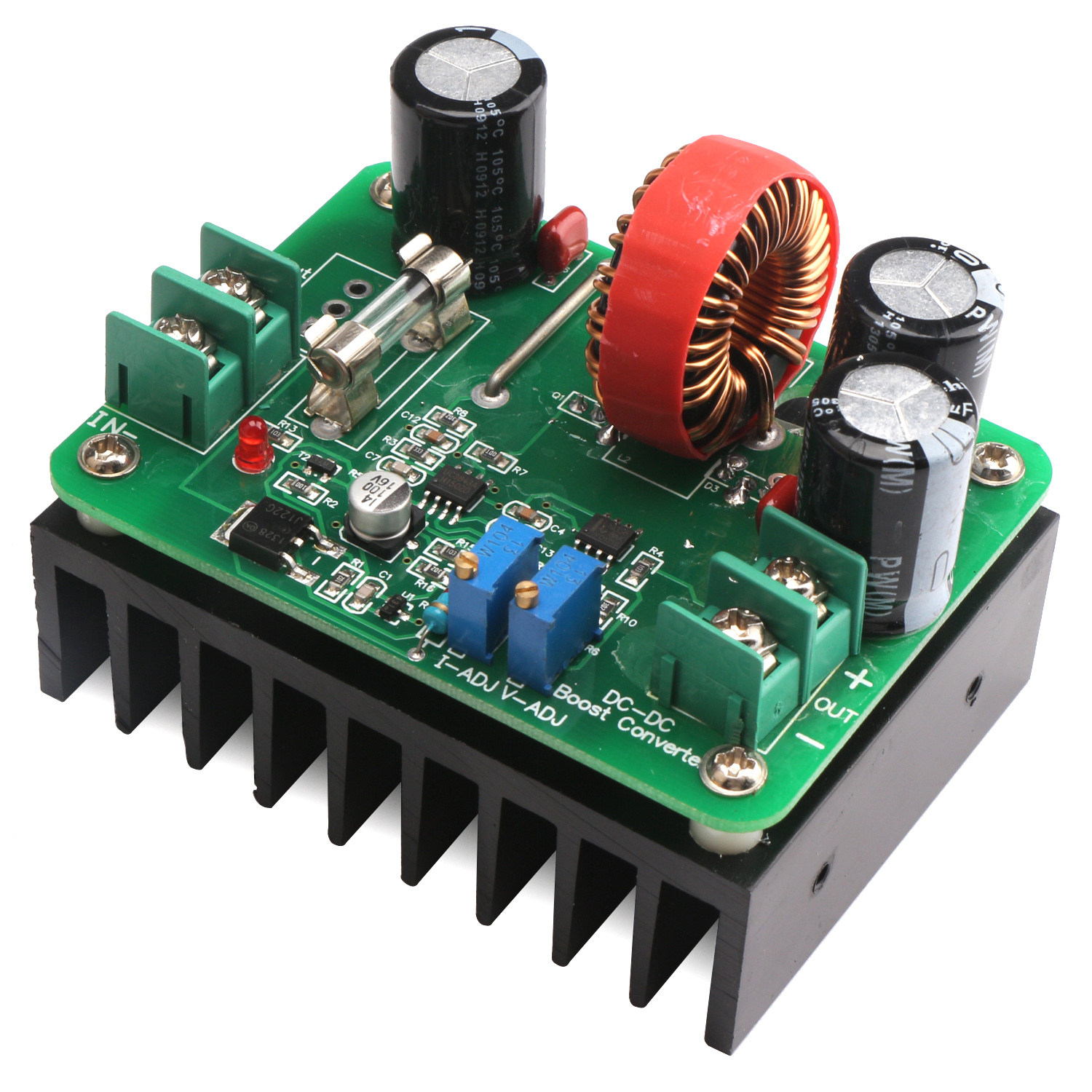

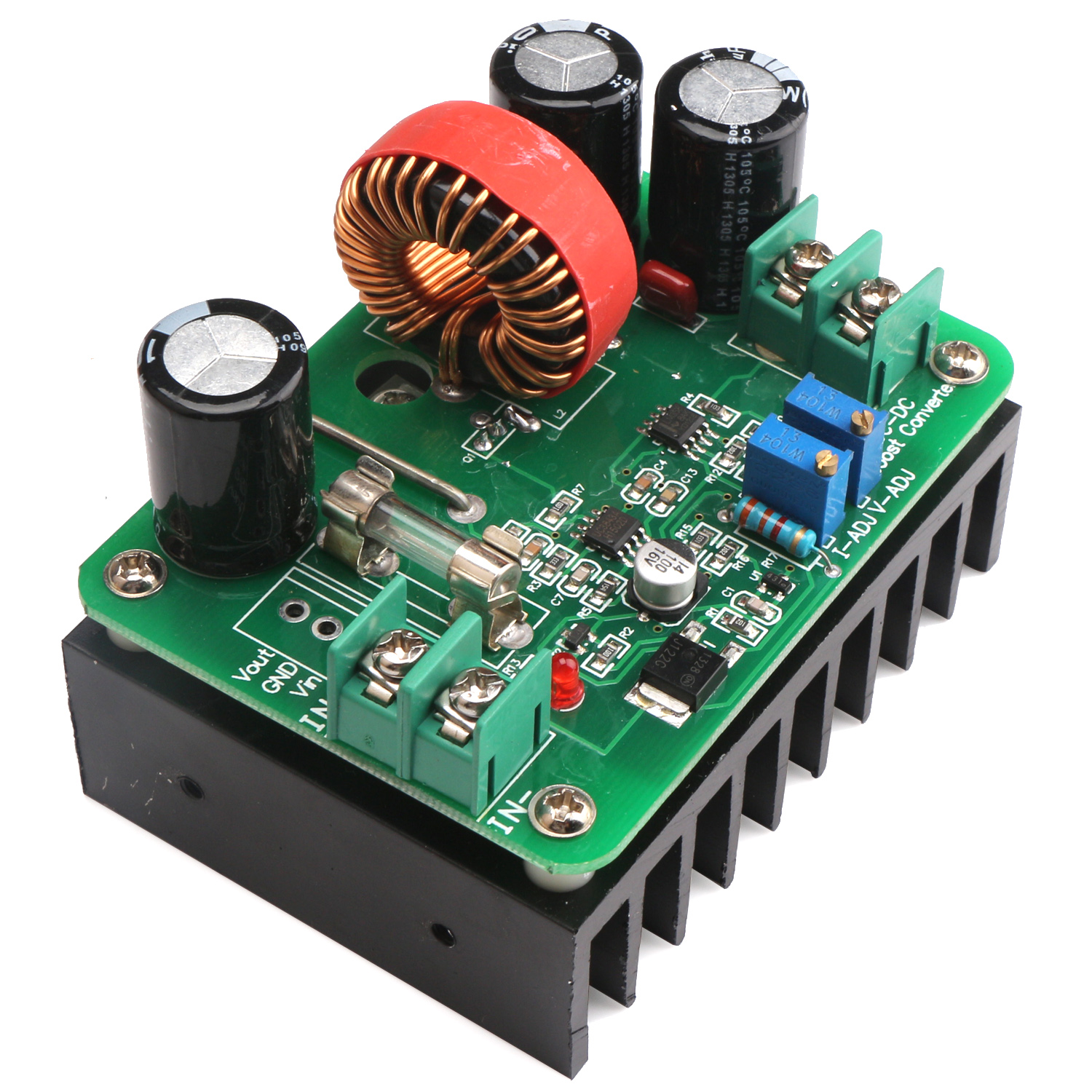

It is 600W high power DC boost converter, wide voltage, voltage range for 10V-60V to 12V-80V, maximum output current 10A, current adjustable, the highest conversion efficiency of 95%.

  • Input voltage: DC 10V-60V
  • Input Current: 15A (Max)
  • Output voltage: DC 12V-80V continuously adjustable
  • Output current: 10A (Max) adjustable
  • Output power: effective power P = input voltage V * 10A
  • Conversion efficiency: up to 95% ( Input voltage and current; Output voltage and current will Affect the conversion efficiency)

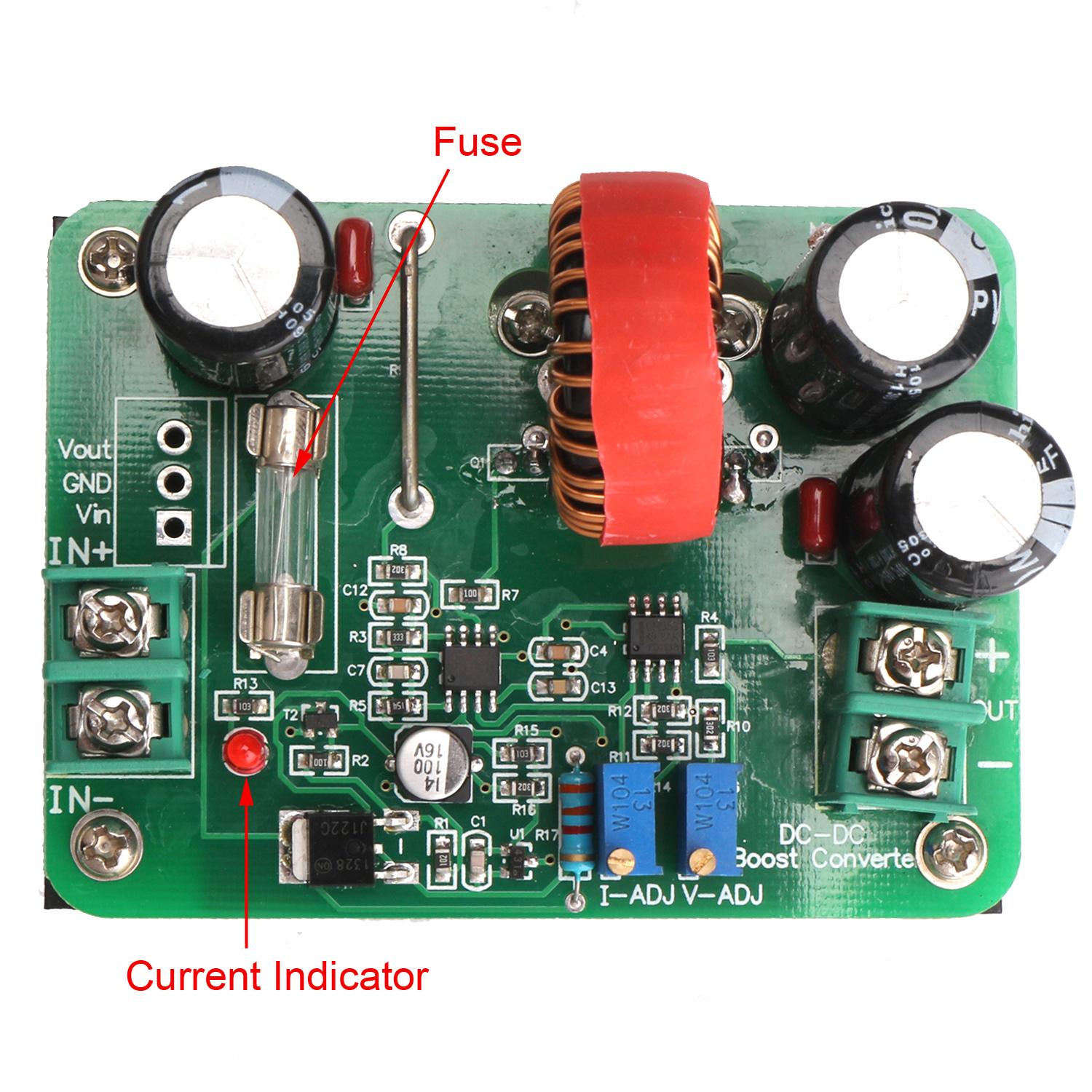

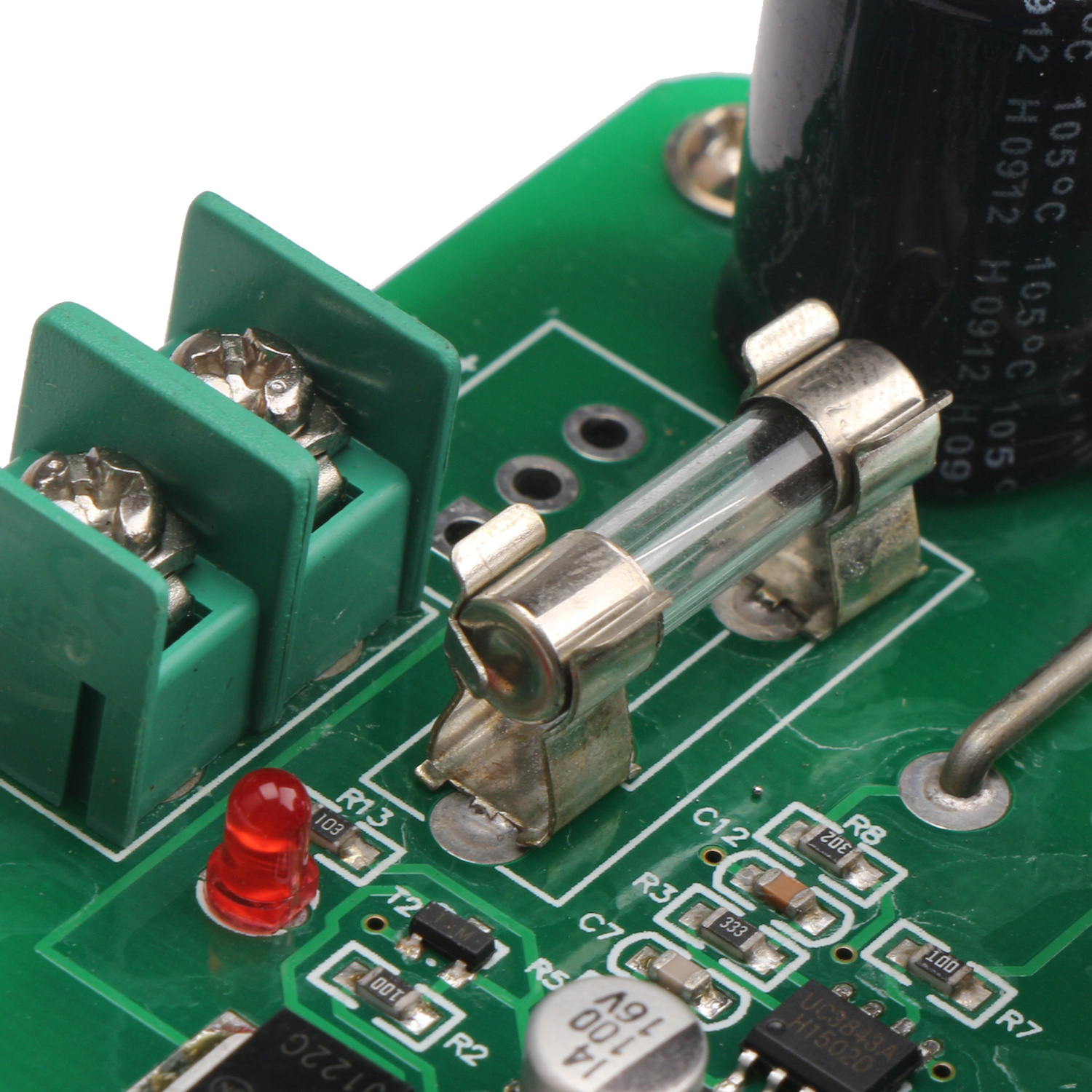

  • Short-circuit protection: fuse
  • Dimension: 85x63x60mm
  • 600W Refers to the maximum power of the module under specific conditions, In the case of different input voltage, The maximum output power declined by the maximum input current limit. For example
  • Input Voltage 12V:Max Output Power P=12V*10A=120W
  • Input Voltage 24V:Max Output Power P=24V*10A=240W
  • Input Voltage 60V:Max Output Power P=60V*10A=600W
Some Applications:
  • DIY a output adjustable car power supply. input Car DC 12V, output can be DC 14-80V continuously adjustable. but the output voltage can not less than input voltage.
  • Car Laptop Power Supply. input 12V, adjust the output voltage for the laptop/notebook.
  • Booster charger. use 12V power for charging 24V battery. and the charging current could be adjusted.
  • Powered for electronic devices.
Application Example:

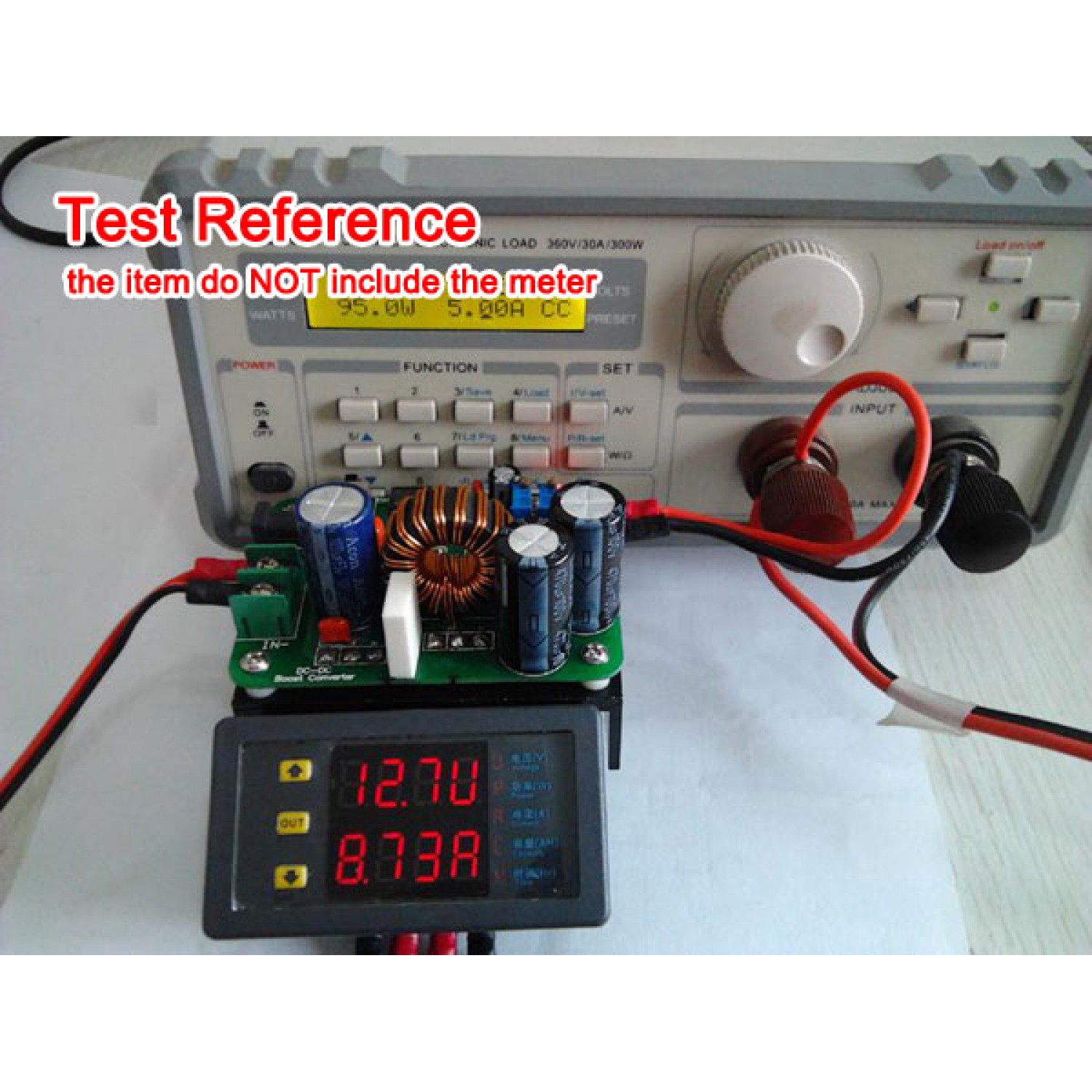

  • Input 12V, 8.73A, output 20V, 5.0A, Efficiency about 86%

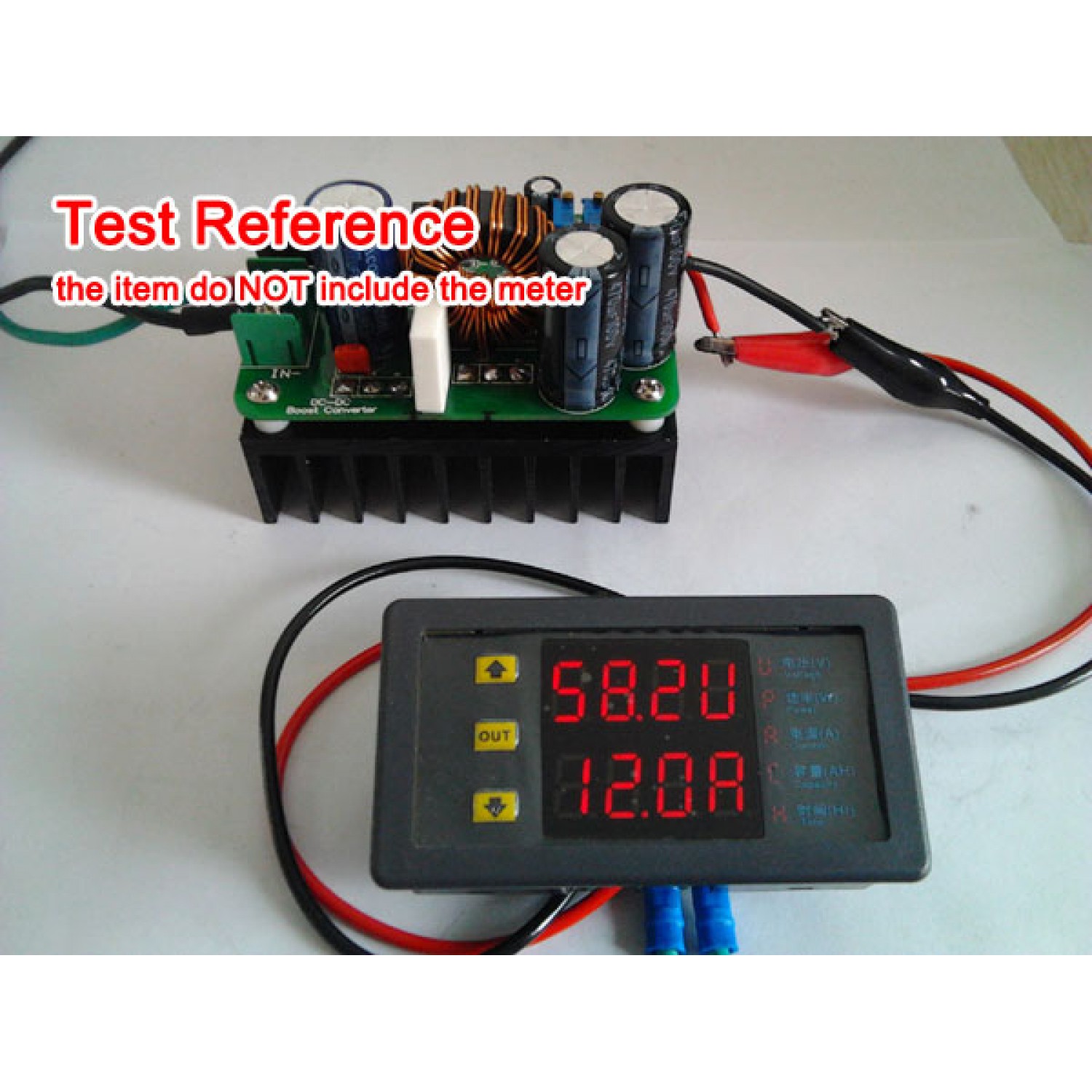

  • Input 54V 13.5A, Output 58V 12A, Use 5Ω1Kw resistance as the load test, Efficiency 95%
Package Include:
  • 1x DC Converter
input voltage10~60V
output current10A
output power120~600W
output voltage12~80V
output ways1

Write a review

Please login or register to review

600W DC Boost Step Up Converter Car Laptop Note Book Power Supply 10-60V to 12-80V Voltage Regulator

  • Brand: Drok
  • Product Code: 090499
  • Availability: In Stock
  • $35.00
  • $18.30
  • Bulk Buy Discounts. Buy more please contact us
