It is a 2in1 Volt Amp Panel Meter, Power Supply: AC220V +/- 10%，Measure Voltage Range DC 0-19.99V,Measure Current Range 0-5.00(needn't external shunt,measure directly), Accuracy: 1% (± 2 digit ),small size, high efficiency, long term stable and reliable quality,easy installation and use . Applications:Suitable for Sine wave inverter, solar wind generator, LED lights measure automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement.
Features:
Note:
Package included:
- Working Mode: Voltage and current dual display
- Power Supply: AC220V +/- 10%
- Measuring Range: DC 0-19.99V, 0-5.00 A (needn't external shunt,measure directly)

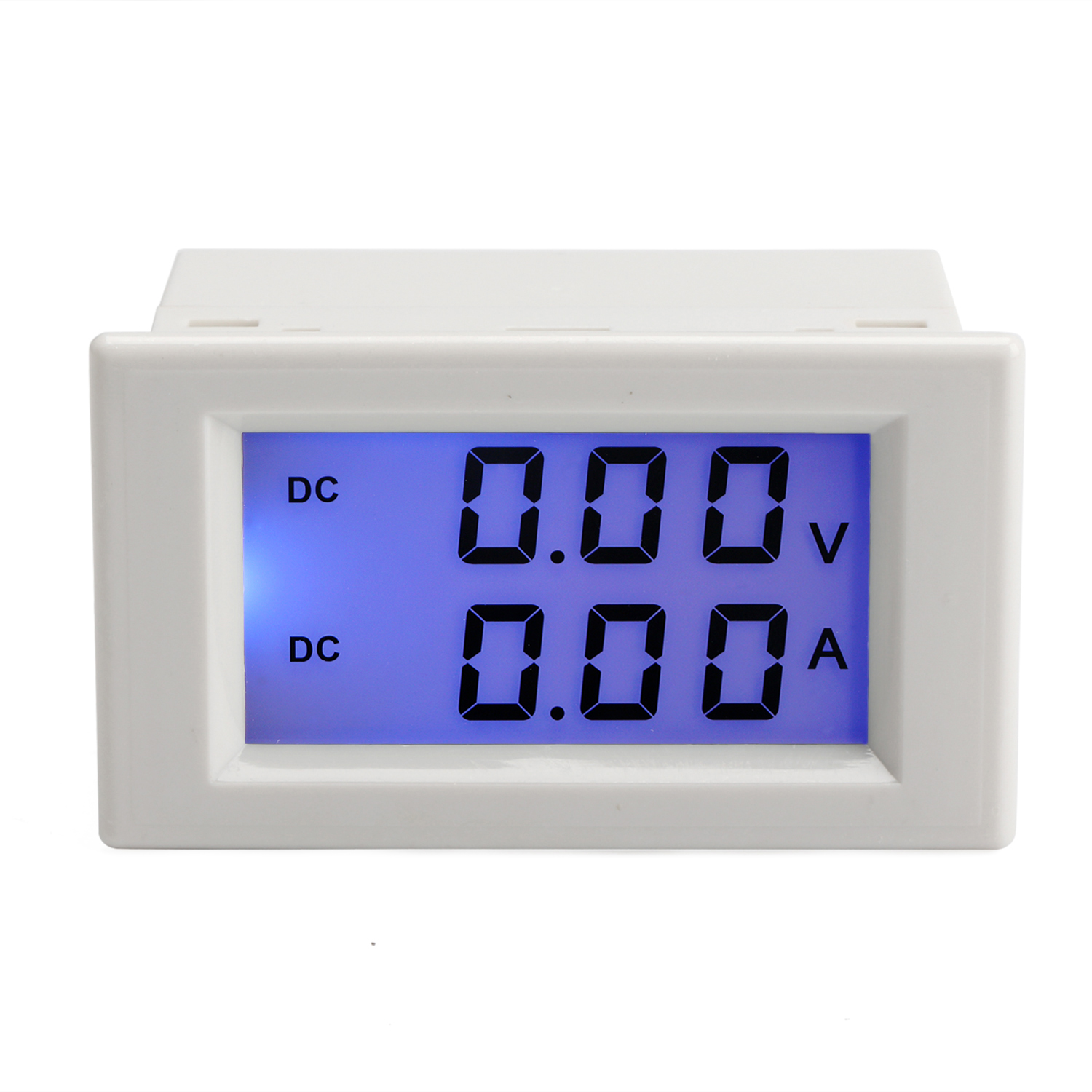

- Display: LCD, Blue backlight, 3 1/2 digits (visible screen size: 43x25mm)
- Accuracy: 1% +/- 2 digits
- Power Consumption: <0.5 VA
- Measurement speed: about 2 times / sec

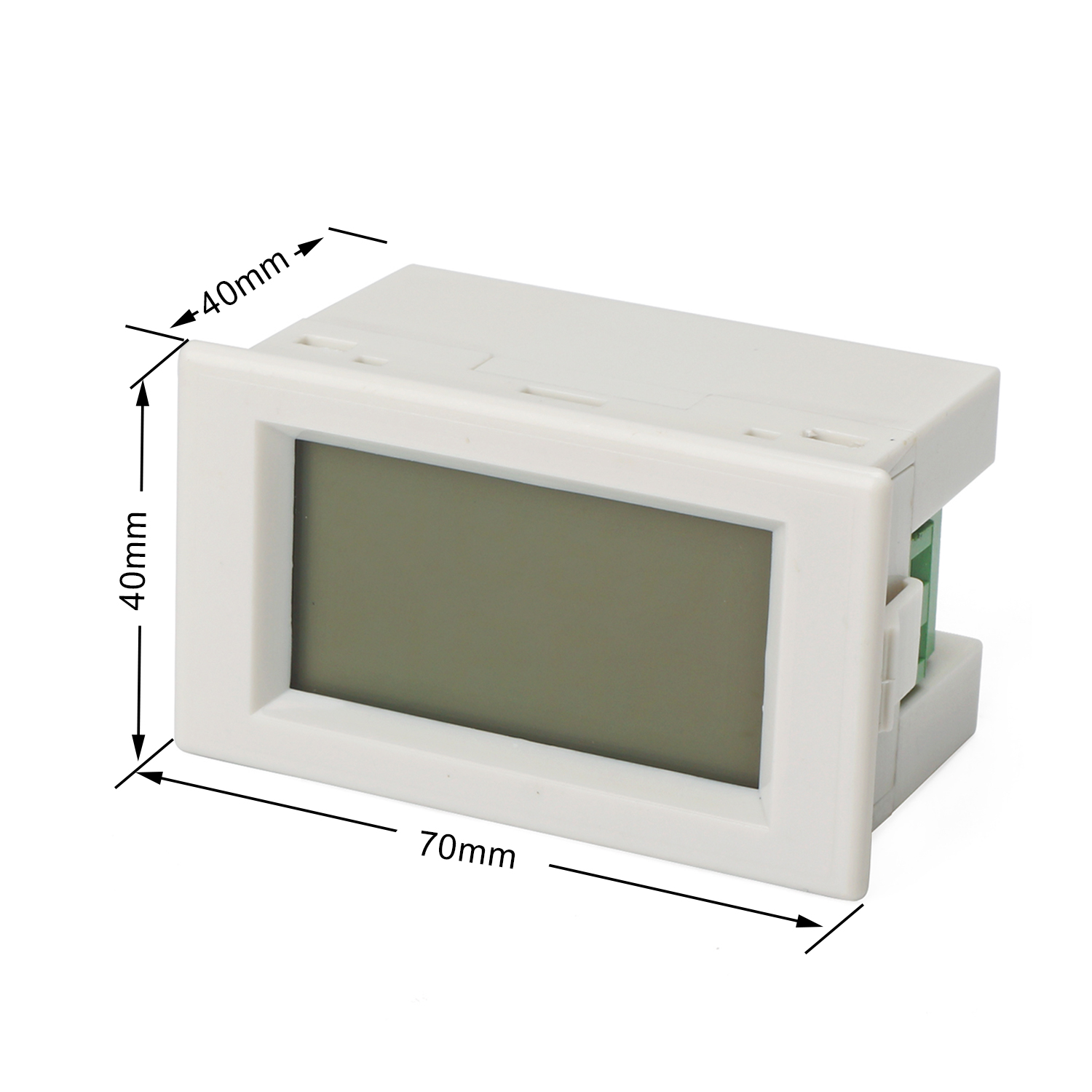

- Dimensions: 70x40x40mm
- Installation Size: 68x38mm (flush mounting)
-
Can directly replace the 85L17 Analog current and voltage meter
- Usage:Charger, inverter, solar energy, wind turbines, LED lights measurement and etc.
Note:
- The power supply must be Pure Sine Wave Voltage (modified sine wave or square wave will burn the meter)
Package included:
-
1x Digital DC Voltmeter Ammeter
| Attributes | |
| input voltage | 200V |
| output current | 0~5A |
| output power | -- |
| output voltage | 0~20V |
| output ways | 1 |
2in1 Digital DC Voltmeter Ammeter LCD 20V/5A VA Amperage Voltage Current Measurement
- Brand: Drok
- Product Code: 100106
- Availability: In Stock
- $25.90
- $17.62
-
Bulk Buy Discounts. Buy more please contact us
Qty 2 5 10 30+ Price $16.74 $15.86 $14.98 $14.10
 |
