Parameter:
Working Voltage: DC 6.0 - 30V
Timing Range: 0.01s-9999min
Quiescent Current: 15mA
Working Current: 50-130mA
Load Capacity: Within DC 30v 30A or AC220V 30A load
Working Temperature: -40~85℃
Lifetime: over 100,000 times

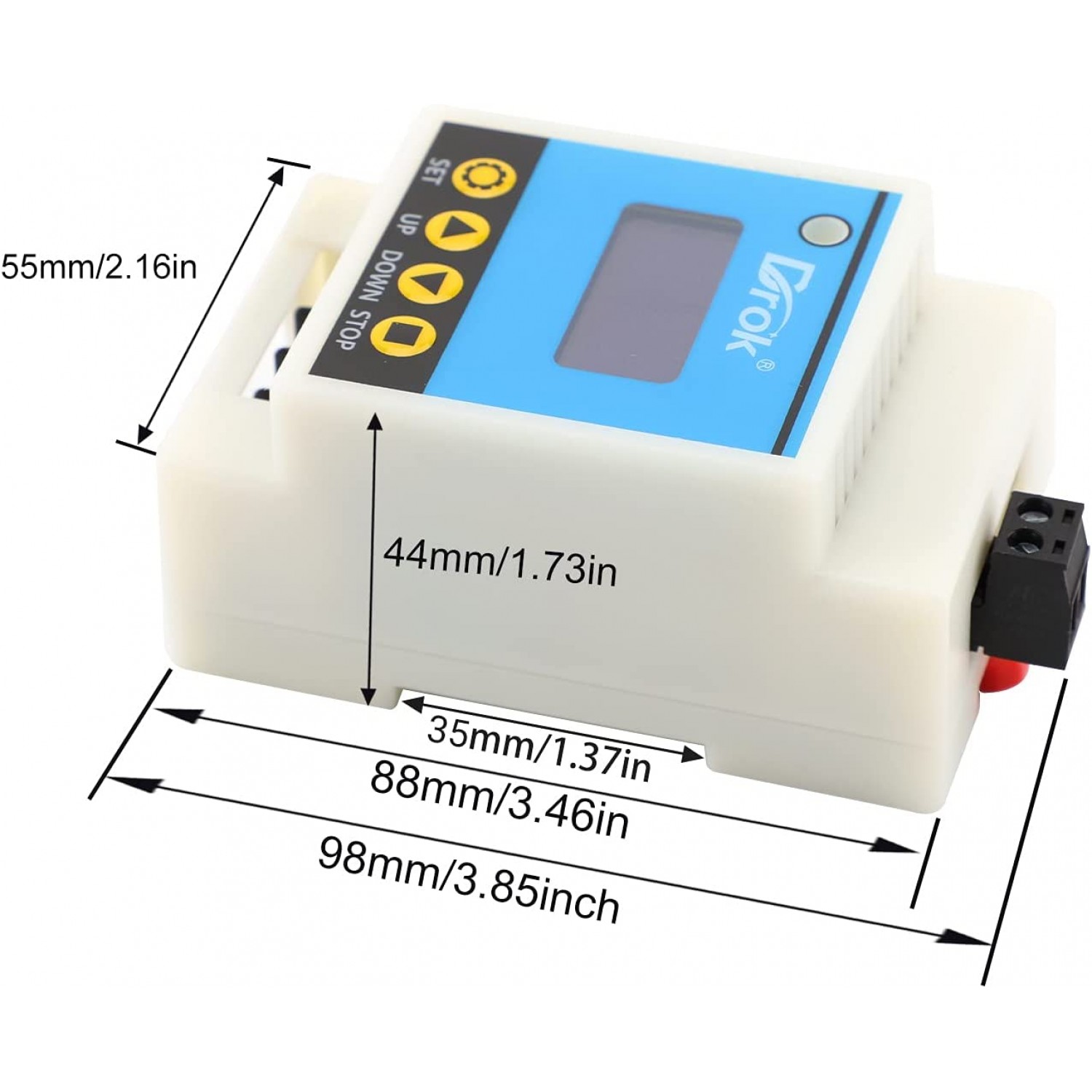

Dimension: 98mm*55mm*44mm
Trigger Signal Source : High Level Trigger(3.0-24V)
Low Level Trigger(0.0-0.2V)
Switch Control(passive Switch)
Auto Sleep Mode --- Automatically Close LCD Display Without any Operation in 5 Minutes, Press any Button to Wake up.
Auto Save --- All the Setting Parameters are Automatically Saved After Power Off.
Package Included:
1 x Relay Module

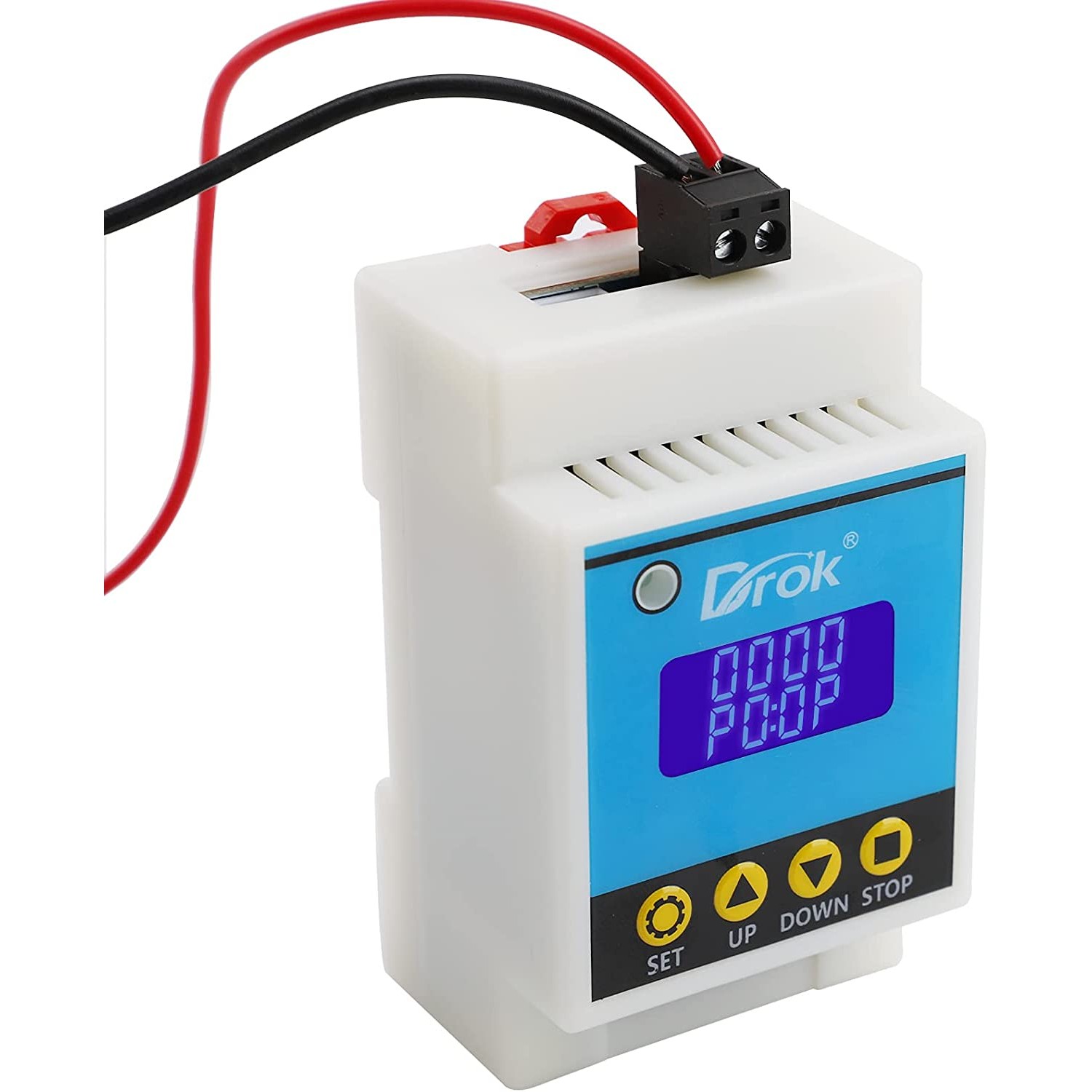

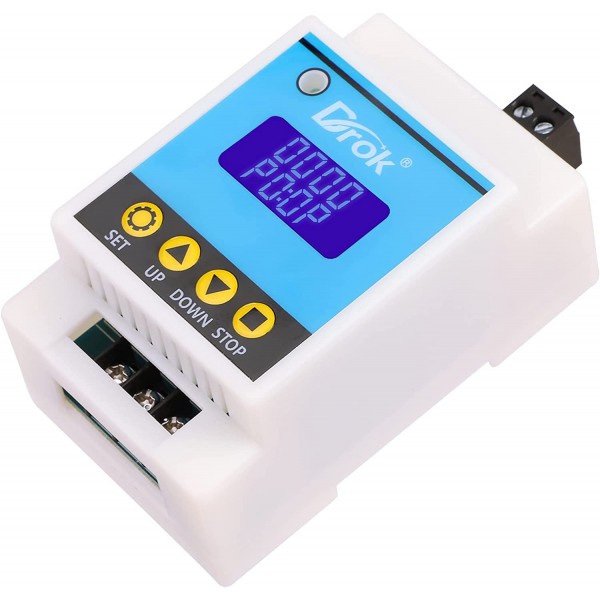

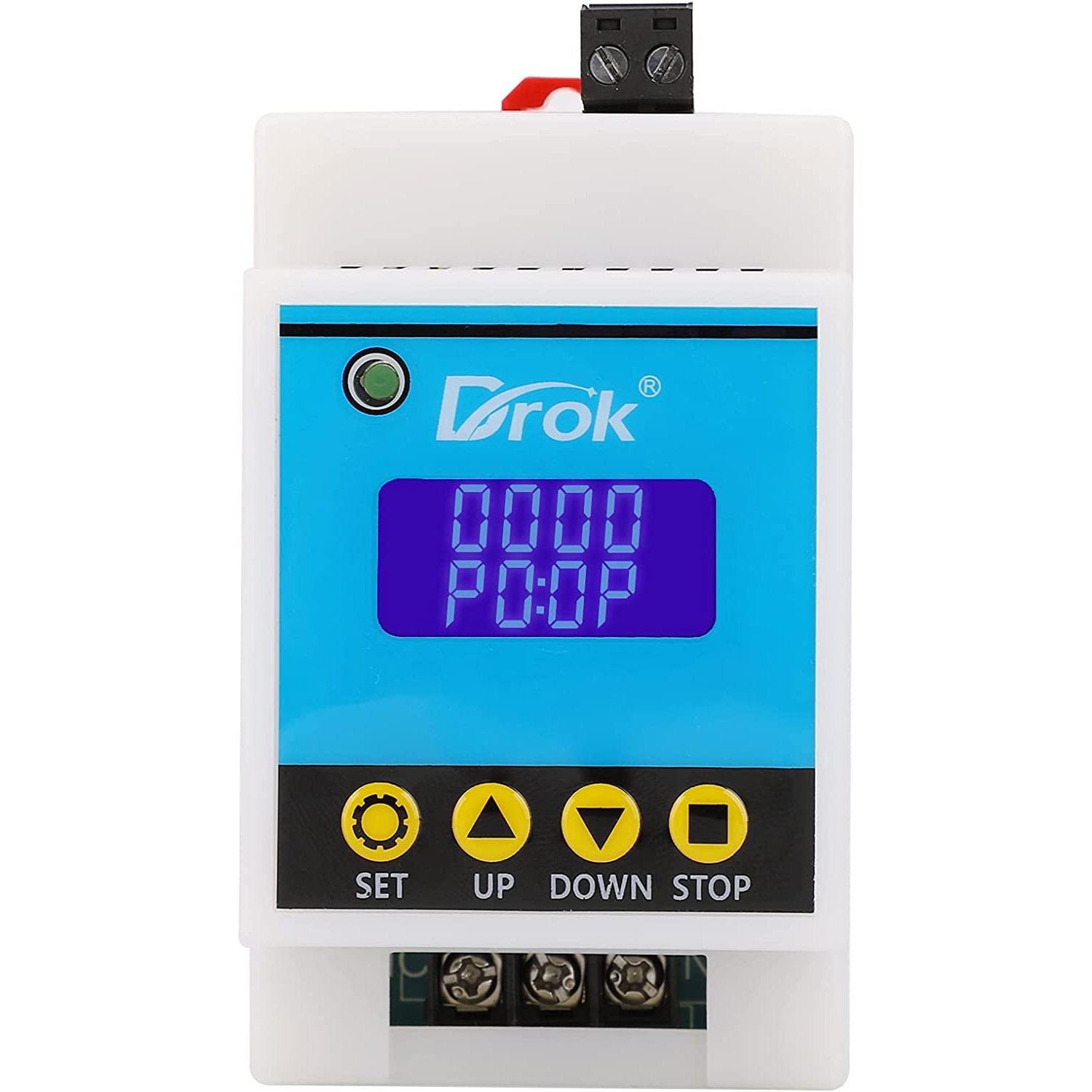

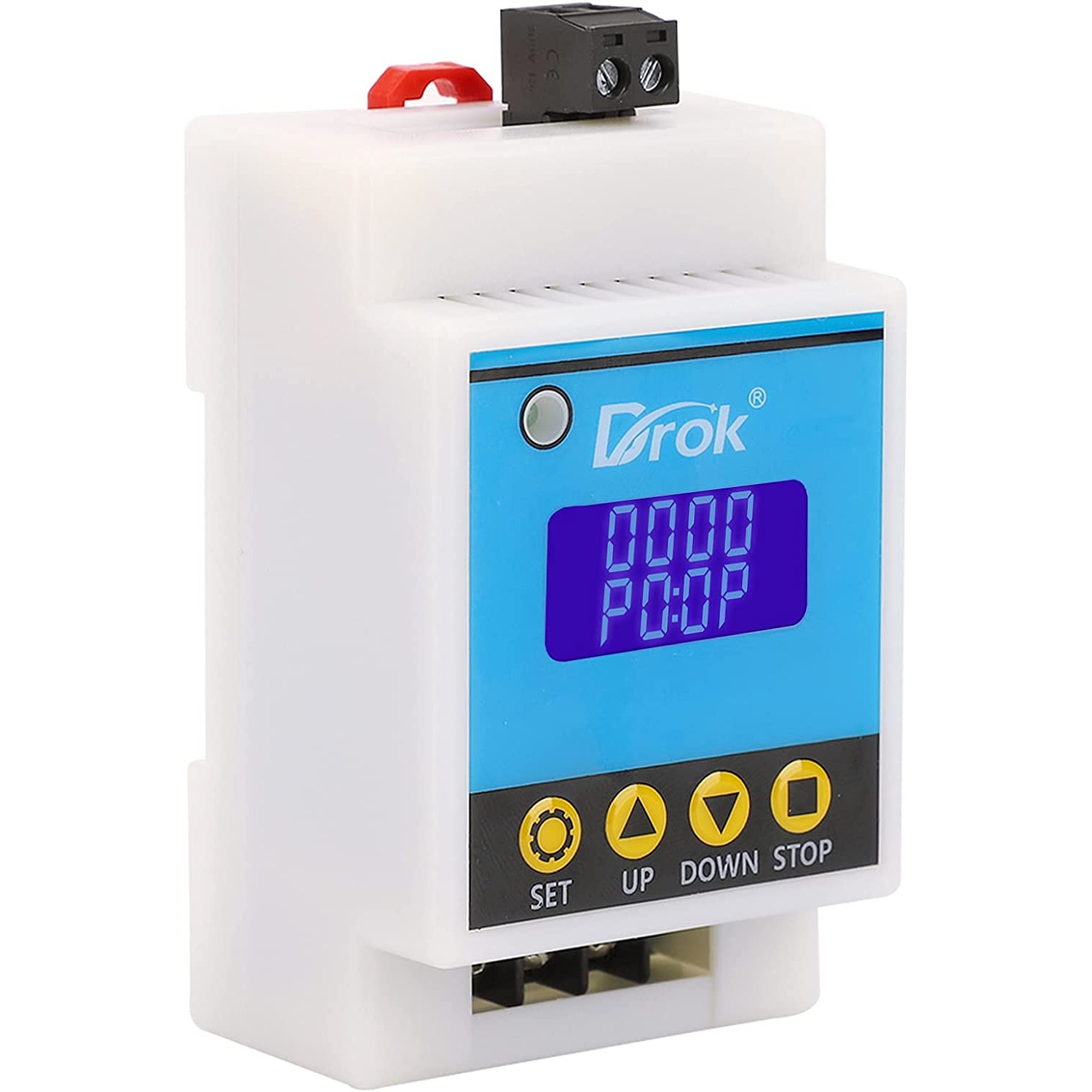

Delay Relay Module DC 6-30V Timer Relay 6V 12V 24V 0.01s-9999min 50-130mA Digital Timer Cycle Delay Power Supply ON/Off Controller
- Brand: Drok
- Product Code: 200594
- Availability: In Stock
- $15.99
- $12.47
-
Bulk Buy Discounts. Buy more please contact us
Qty 2 5 10 20 30+ Price $11.84 $11.22 $10.60 $9.98 $9.35
 |
