DC 120V 300A Multimeter

Specification:

• Measuring Parameters: Voltage, current, power, battery capacity, amp-hour, watt-hour, time.

• Voltage Measurement Range: DC 0.01-120V

• Current Measurement Range: DC 0.4-300A

• Voltage Measurement Accuracy: ± 1% ± 5 digits

• Current Measurement Accuracy: ± 2% ± 5 digits

• Display Resolution: 0.1A, 0.01V,0.01AG, 0.01H(1 min)

• Measurement rate: 20 times/second

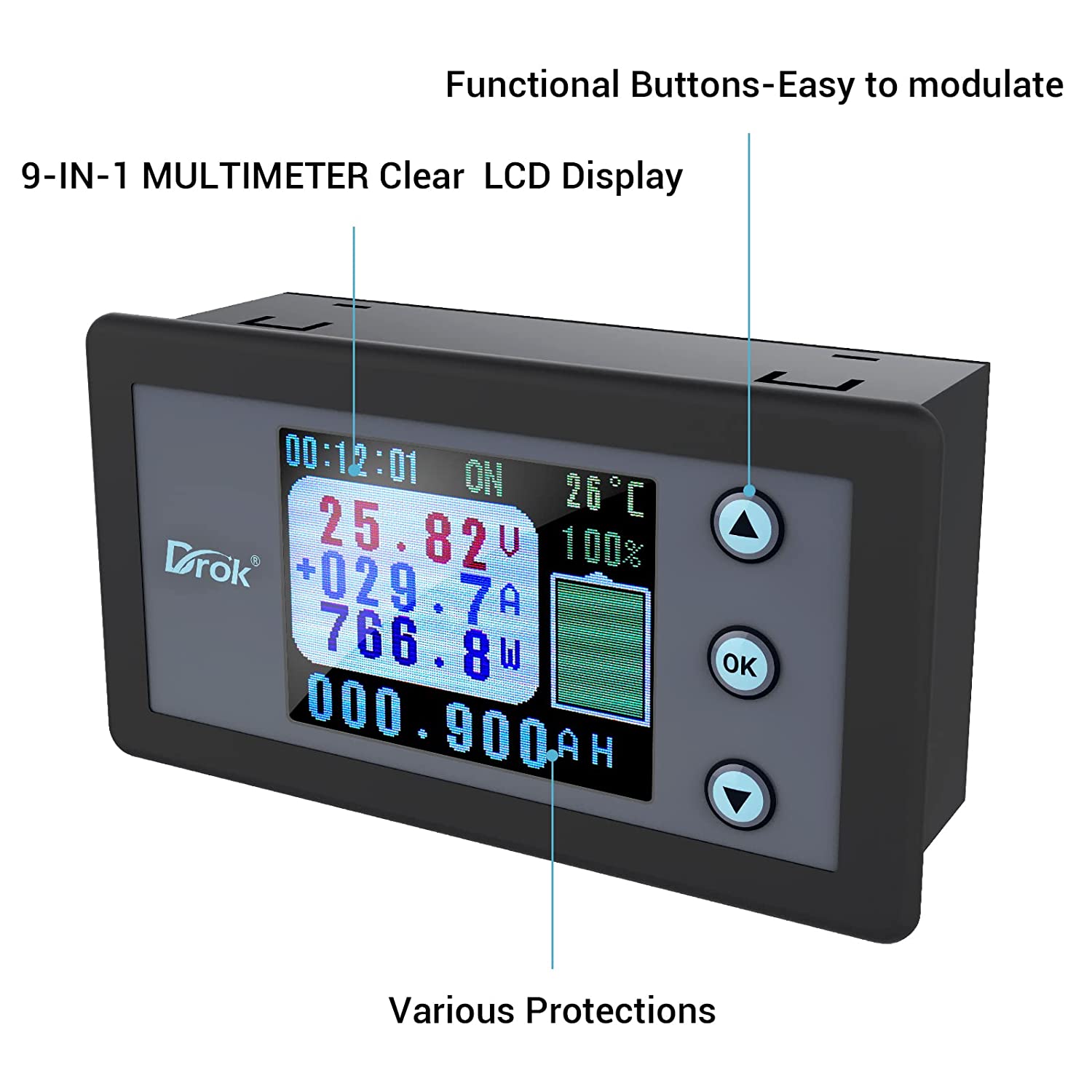

• Display: 1.8 inch LCD color screen

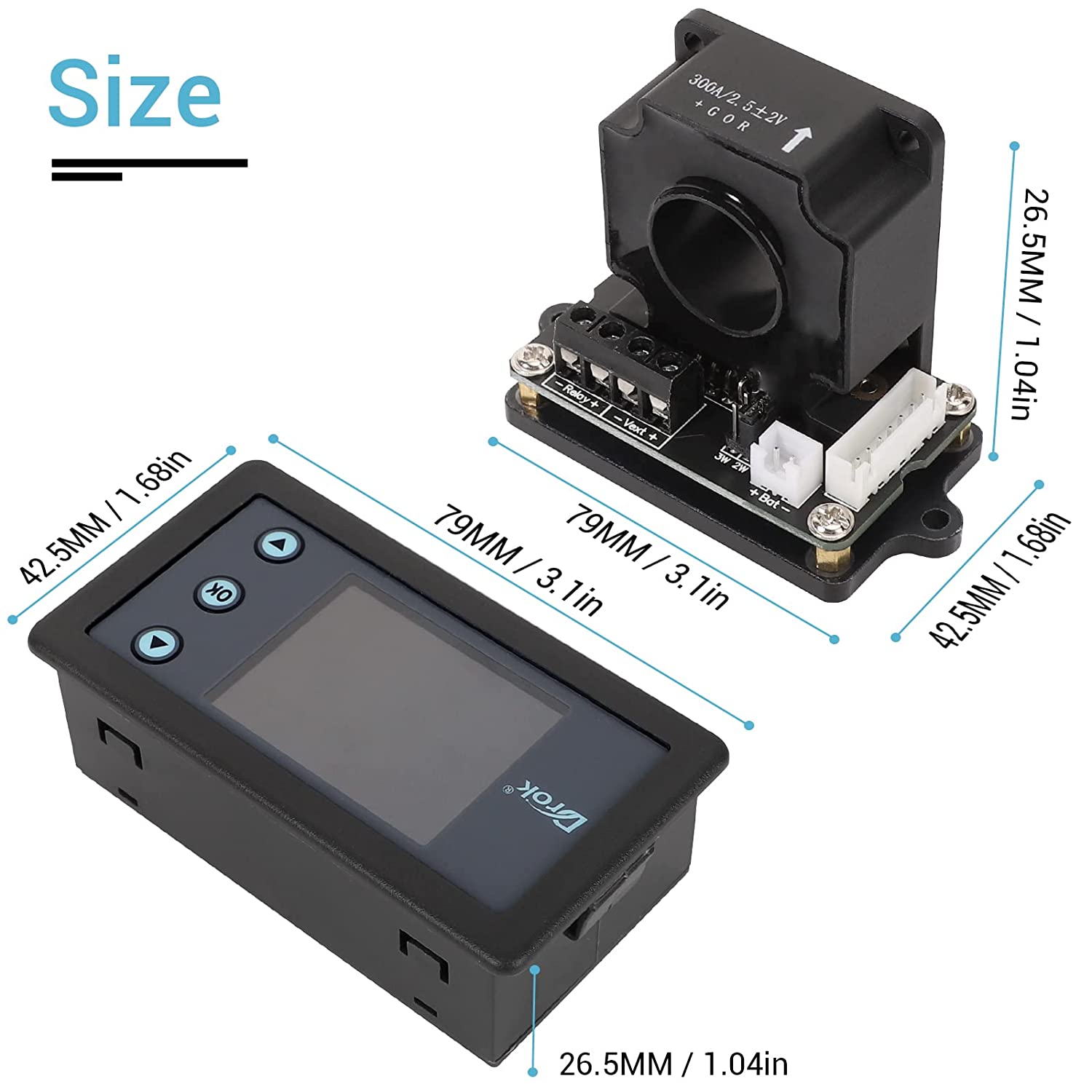

• Size(Display Board): 78*42*26mm/3.07*1.65*1.02 inch

• Size(Measuring Board): 56*36*34mm/2.21*1.42*1.34 inch

• Hall Sensor Size: 79*42.5*26.5mm/3.10*1.68*1.04 inch


Protection Function:

• OVP (Over-voltage protection): 0.01V-120V

• OCP(Over-current protection): 0.1-50A

• OPP(Over-power protection): 0.01W-9.99KW

• LOP(Low-voltage protection): 0.01V-120V

• OAH(Over-charge protection): 0.01AH-9999AH

• OFT(Over-time protection): 1min-99hour59min


Application:

Battery charge-discharge monitor for electric car;

Battery power energy level indicator for photovoltaic system;

Battery voltage current power tester meter.

Other Functions:

 > AH power off memorized function;
 > Time & AH reset function;
 > Calibration function;
 > LCD screen can be switched off automatically or manually.

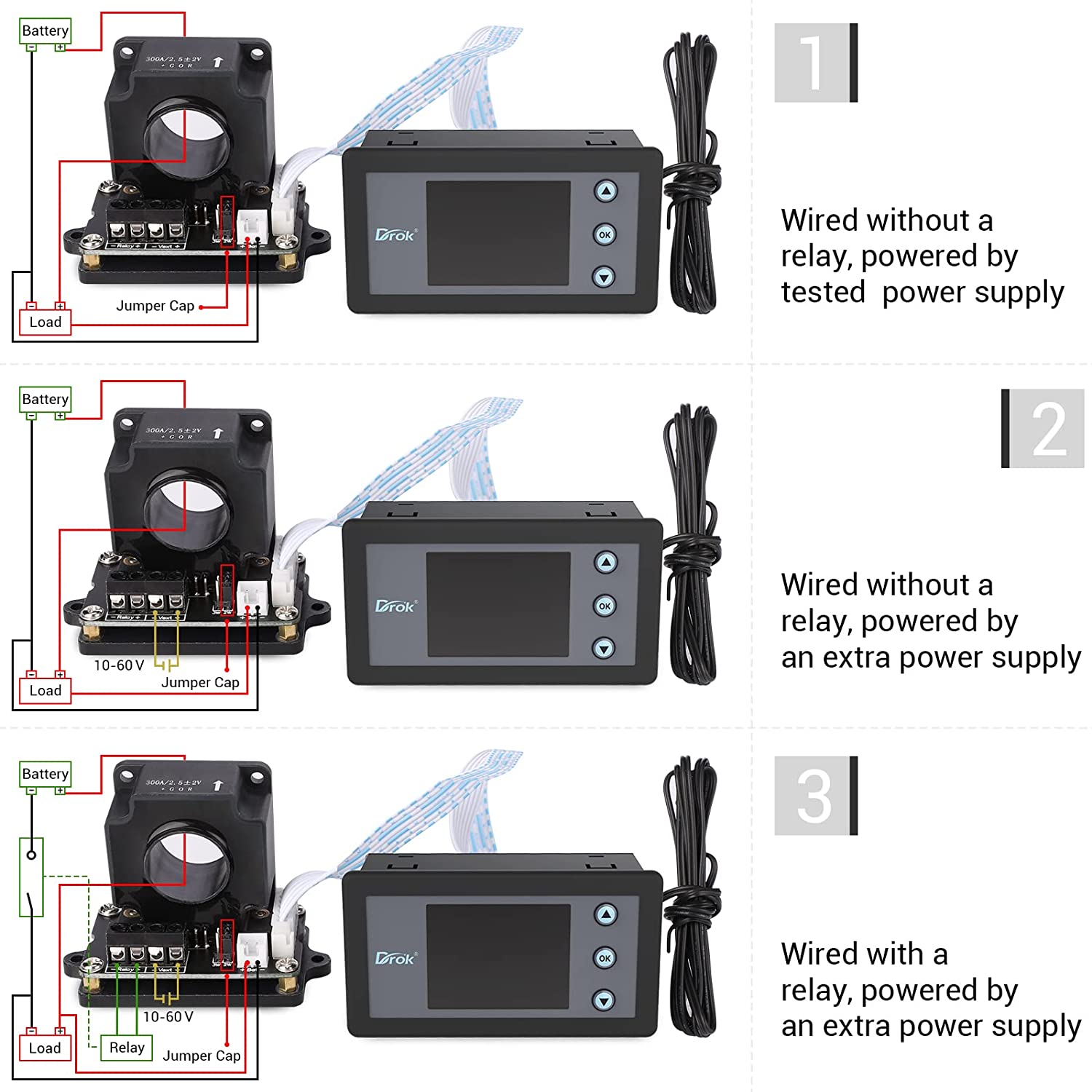

 > With output control button to enable/disable output (requires a relay).

Package Includes:

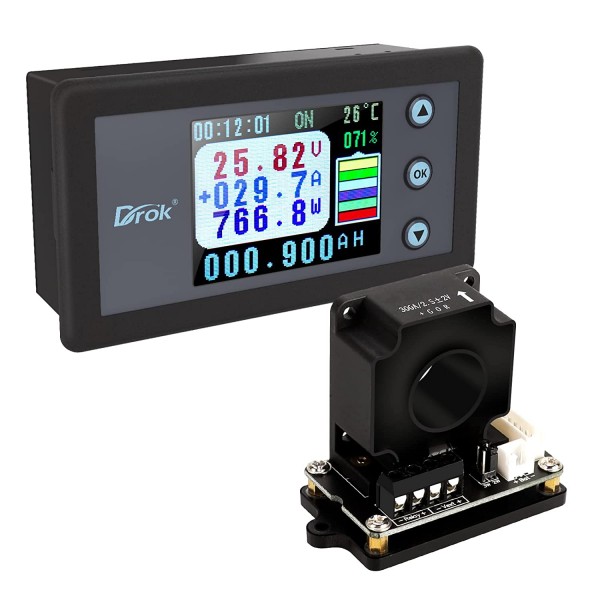

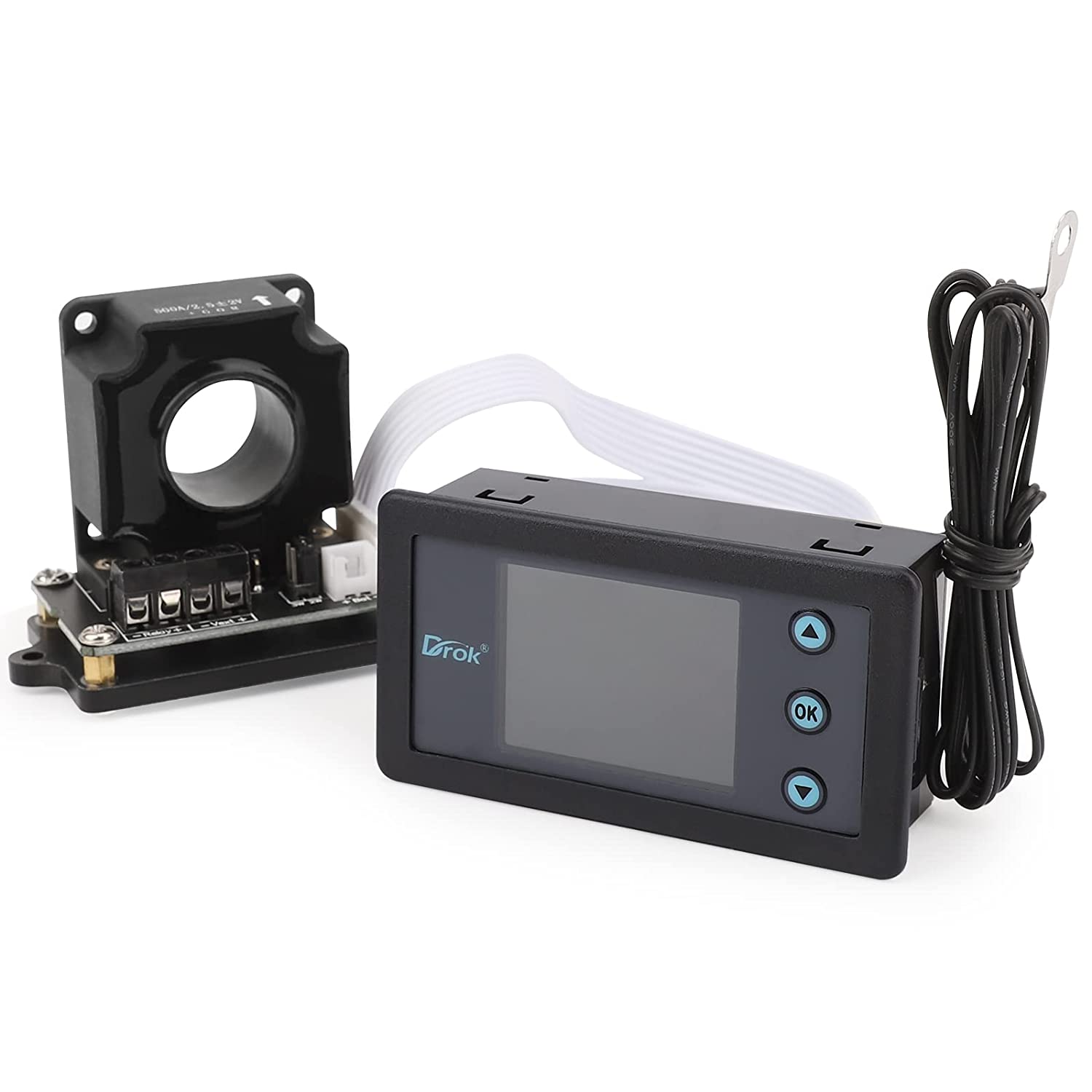

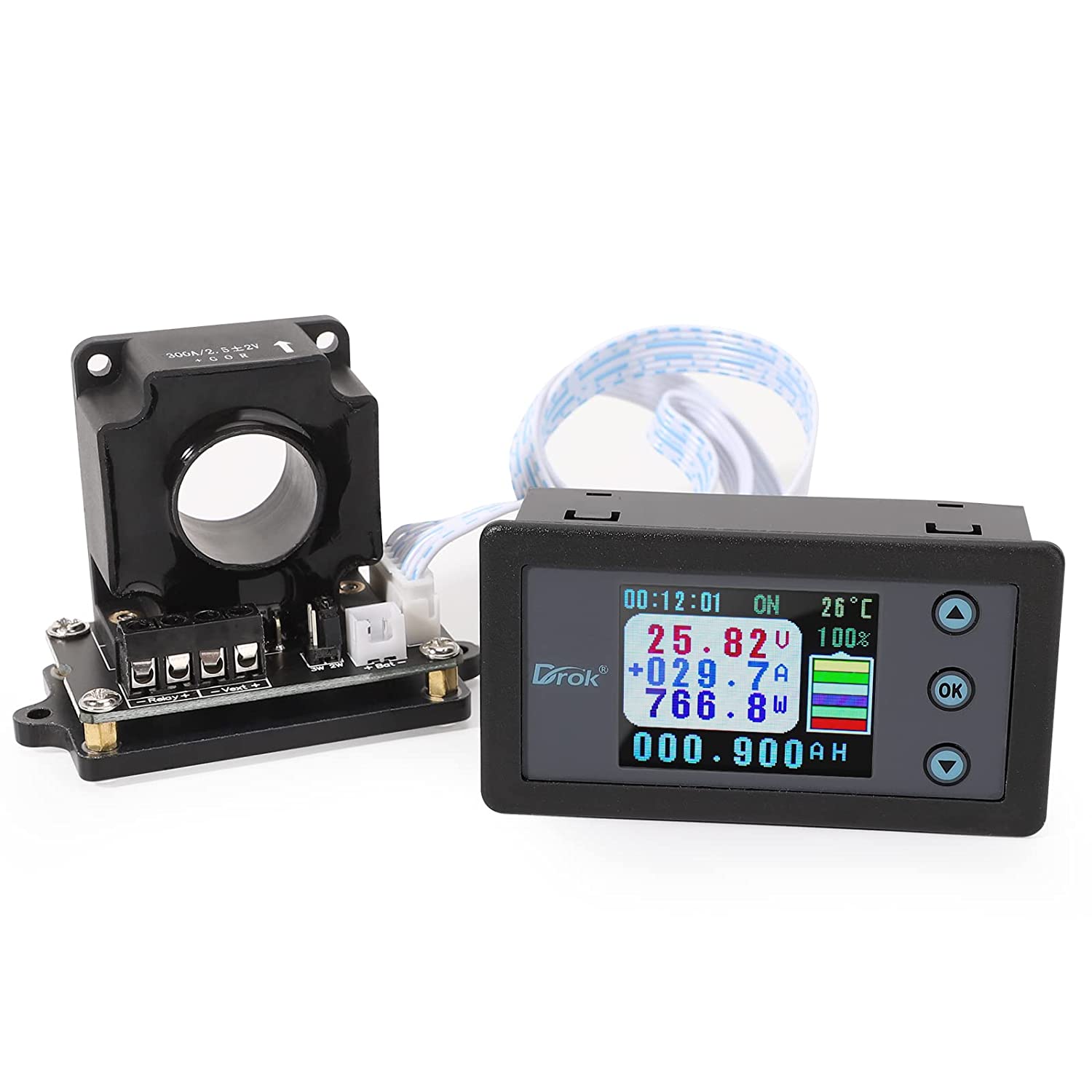

1x Charge-Discharge Monitor
1x Hall Sensor
